Description
| Specification | Details |
|---|---|
| Model | i24 |
| Category | Ceiling |
| Dimension | 178 × 178 × 38mm |

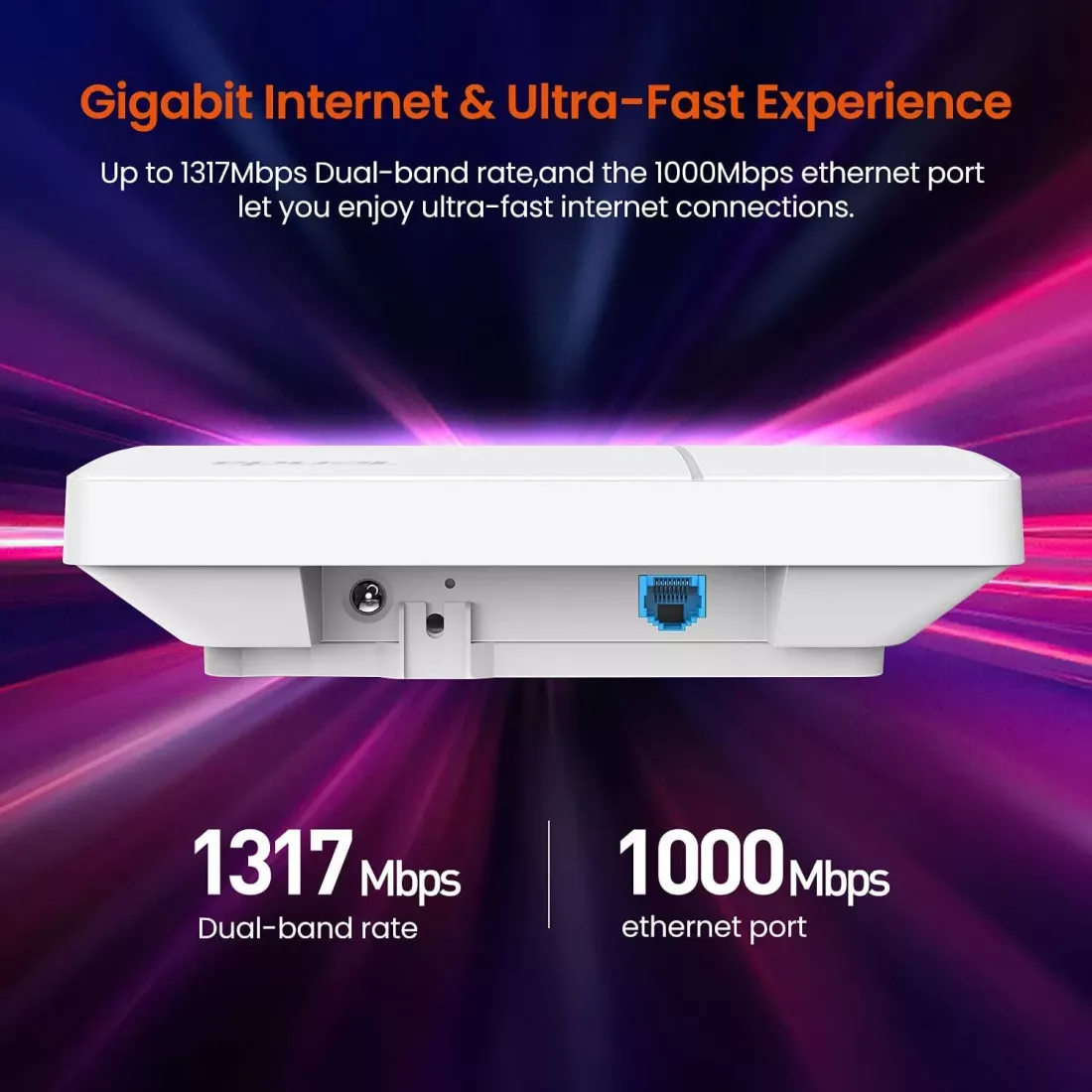

| Interface | One 10/100/1000 Mbps Ethernet Port (PoE) |
| Button | 1 × RESET |
| LED Indicator | 1 × SYS |
| Maximum Power Consumption | 13.5W |
| Power Supply | 802.3af/at & DC: 12V 1A |
| Max. Number of Clients | 256 |
| Recommended Clients | 40 |
| Antenna | 2.4GHz: 2 × 4dBi 5GHz: 2 × 4dBi |
| 2.4GHz Max. Power | 23±1.5dBm |
| 5GHz Max. Power | 23±1.5dBm |
| Reception Sensitivity | 802.11b: -93 dBm 2.4GHz 802.11n (MCS7): -73 dBm 5GHz 802.11a: -93 dBm 5GHz 802.11n (MCS7): -74 dBm |
| Frequency Range | 2.4GHz & 5GHz |
| Standard & Protocol | 802.11a/b/g/n/ac (wave2) |
| Maximum Wireless Speed | 2.4GHz: 300Mbps 5GHz: 867Mbps |
| Bandwidth | 20MHz / 40MHz / 80MHz |
| Operating Mode | AP / Client AP |
| Max. No. of SSID | 2.4GHz: 8 5GHz: 4 |
