Description
- Compatible Devices: Camera, Wireless AP, IP Phone

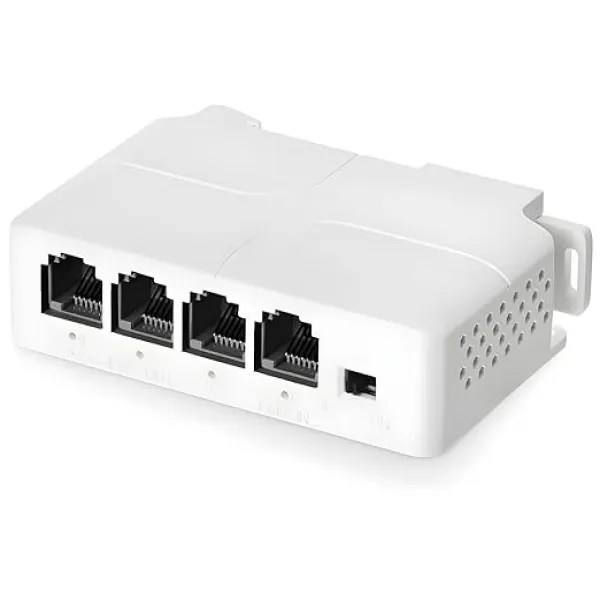

- PoE extender: Includes 1 PoE-in 3 PoE out ports, 10/100 Mbps rate. Powered by PoE network, no AC power required
- IEEE 802.3 af/at: Supports standard PoE, input max 30W, output max 24W, average 8W per port. PoE Voltage 44-57 VDC PoE Pin: Input: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-); Output: 1/2 (+), 3/6 (-)
- Plug & Play: Supports power detection automatically detect devices, just plug in the Ethernet cable,
- connect directly to the device, LED indicator shows the port status, without configuration. *Please note that does not support 24V passive PoE *
- Easy installation: supports wall mount and DIN rail bracket, smaller size, space-saving, suitable for many positions
- Widely Used Support 3-stage cascading, can connect Poe AP, camera, phone and other POE devices, extends POE coverage at low cost.
